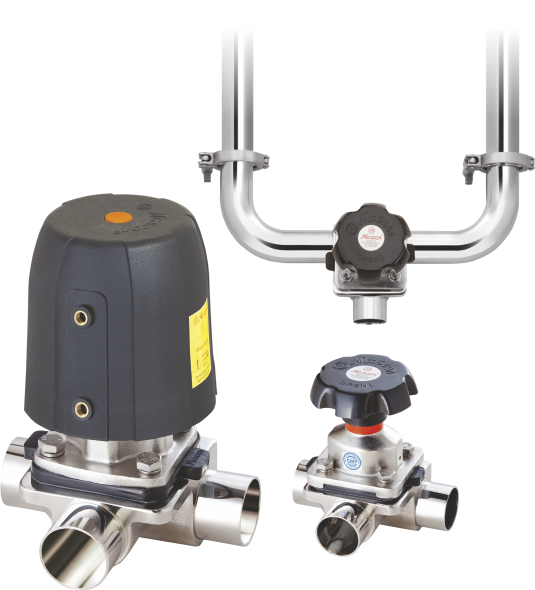

Dead Leg Valve
Description: 3/2 way Sanitary Manual and Pneumatic Operated Zero Dead Leg Sanitary Casted Diaphragm Valve (ZDV).
Size / End Conn.: DN 20 to DN 65 / Butt weld end and Triclover end.
MOC: STD – ASTM A 351 Gr. CF3M
Diaphragm: STD – EPDM, EPDM backed by PTFE Optional – Silicon
Temp.: STD – 8O°C Optional – 14O°C
Actuator: STD – Manual – ABS, SS 304 wheel, Pneumatic – Glass Filled Nylon.
Accessories: Solenoid value, Micro Switch box
