Diaphragm Valves

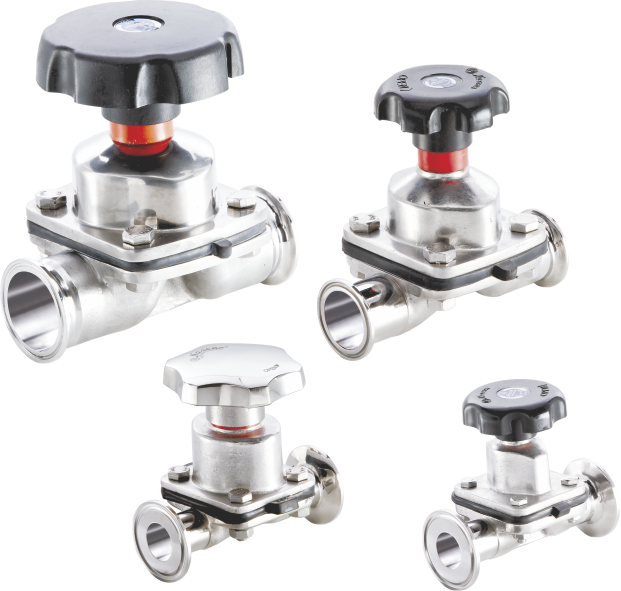

Description: 2/2 way Sanitary Manual Diaphragm Valve (for Autoclavable application refer Mascon).

Size / End Conn.: DN 8 to DN 80 / Hose nipple / Butt weld end and Triclover end. For above sizes consult us.

MOC: STD – ASTM A 351 Gr. CF3M

Diaphragm: STD – EPDM, EPDM backed by PTFE, Optional – Silicon

Temp.: STD – 8O°C Optional –14O°C Actuator: STD – Manual – ABS, SS 304 wheel
