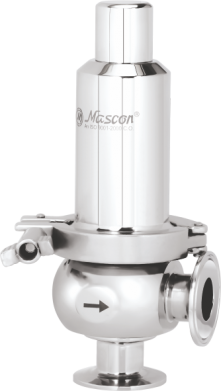

Safety Valve

Description: SSRV – Pop Off Type Sanitary Safety Relief Valve.

Size / End Conn.: DN 15 to DN 50 / Butt weld and Triclover end

Orifice Size: DN 15 to DN 40 – ∅15mm

DN 50 – ∅22mm

MOC: STD – ANSI SS 316L (TP 1.4404)

Spring: SS 304

Set Pressure: 1.0 to 4.5 Bar

Temp.: 130°C (Safe working temperature, please refer to Mascon for temp. above 130°C)
